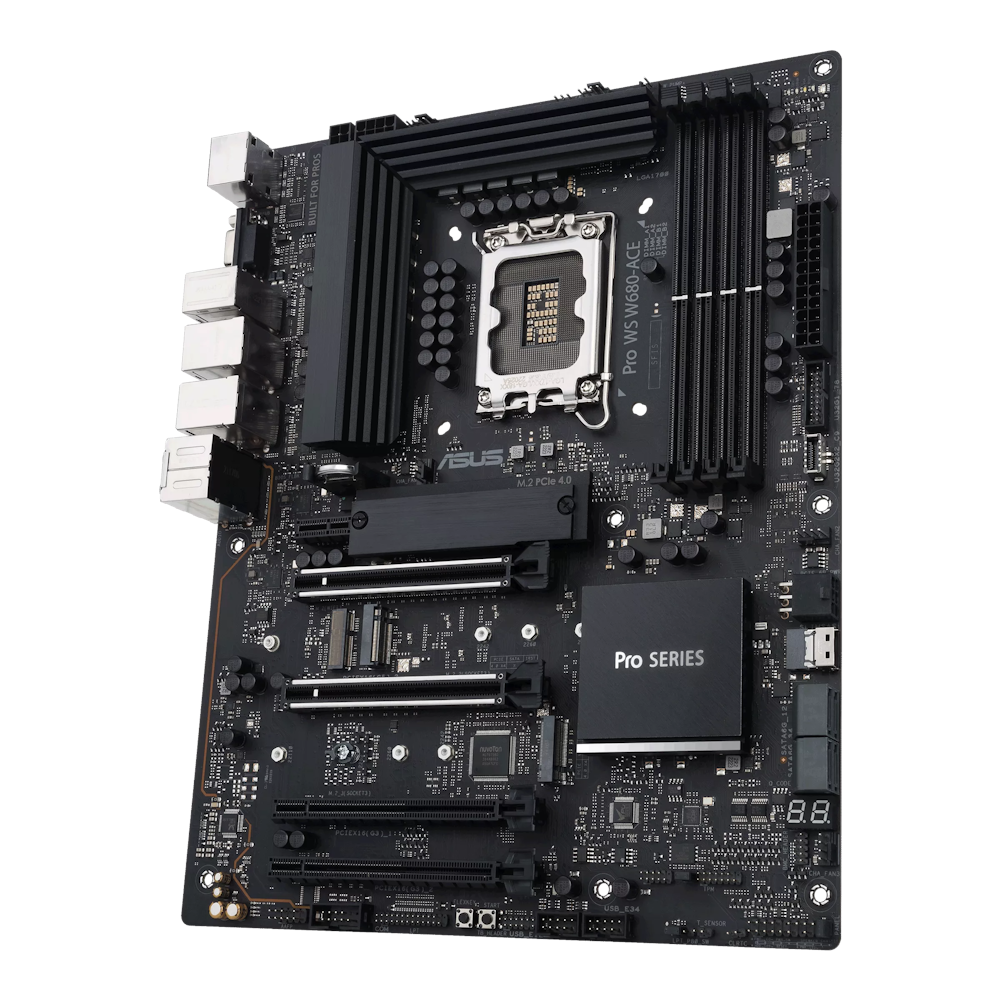

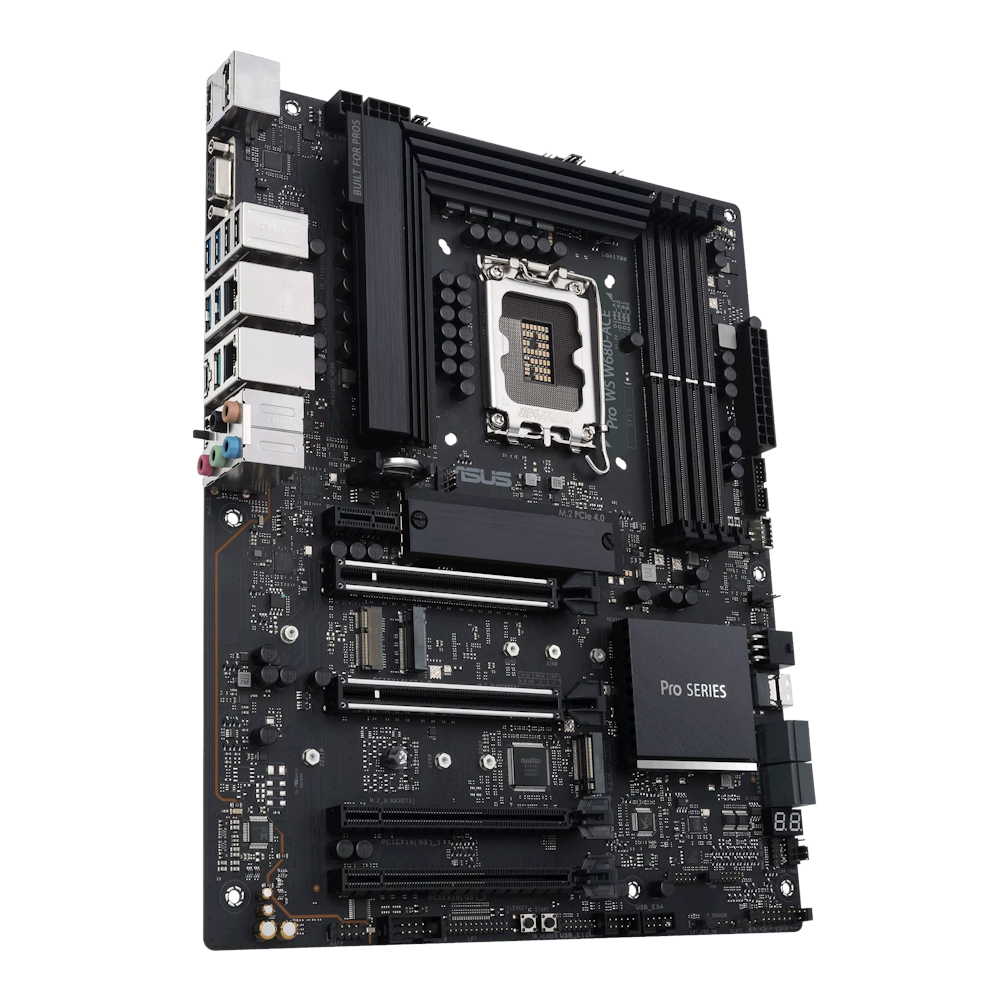

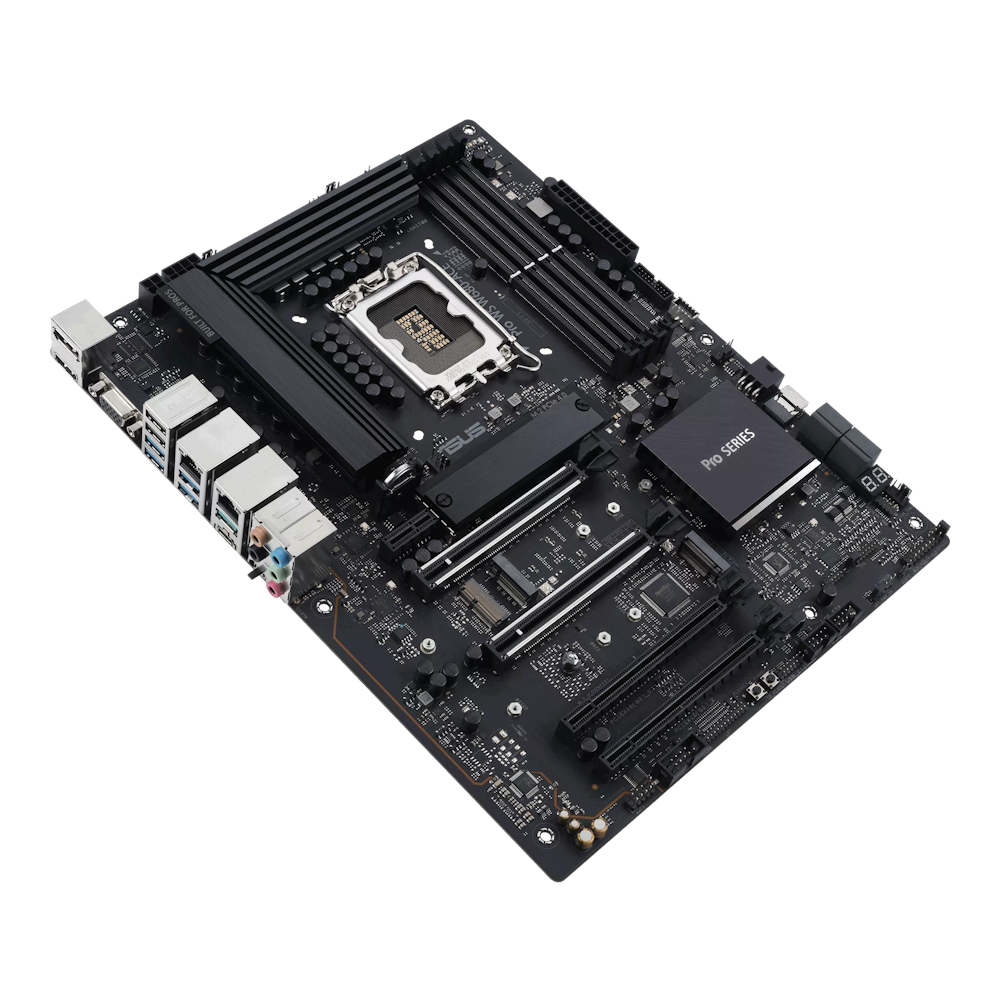

ASUS Pro WS W680 Ace LGA1700 ATX Workstation Motherboard
$
659
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators.
Key Selling Points
- Intel LGA 1700 socket - ready for 13th Gen Intel Core processors and 12th Gen Intel Core
- Enhanced power solution - DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity - dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5 Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, Thunderbolt 4 header support, TPM header, LPT header
- Comprehensive cooling - large VRM heatsink, M.2 heatsinks, hybrid fan headers
- Trusted stability - tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
Product Features
The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions.
Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.
Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5x bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos.
Two PCIe 5.0 x16 slots provide flexible system configurability and expandability - including support for NVIDIA Quadro - for enhanced performance in modeling, simulation, and rendering applications.
Triple M.2 slots support PCIe 4.0, offering up to 64 Gbps data-transfer speeds and flexible M.2 interfaces. The RAID 0/1/5/10 configuration are available for the data protection and increases fault tolerance to the entire system, higher storage capacity and better SSD performance.
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.
An expanded surface area for the chipset cooler maximizes performance and heat dissipation.
M.2 slot has a dedicated heatsink keep the M.2 SSD at optimum operating temperature to ensure consistent performance and reliability.
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted the SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.
Optimized for 24/7 operation, Pro WS W680-ACE motherboard is tested to work in temperatures of up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.
ASUS Pro WS W680-ACE motherboard has been extensively tested for compatibility with over 1,000 components and devices. Each ASUS motherboard model undergoes a minimum of 8,000 hours of strict tests so that you can be 100% confident it is suitable for all environments and applications.
ASUS Pro WS W680 Ace LGA1700 ATX Workstation Motherboard
This product is ordered from our suppliers once you place your order and PLE have received full payment. This item is in stock at our supplier in the following locations
Sydney In Stock at Supplier
PLE Code
PLE-657836Manufacturer
ASUSBoxed Weight
1.61Model Number
PRO WS W680-ACEWarranty
3 Year PLE Standard Return to Base
This document and other documents provided pursuant are for informational purposes only. The information
type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee
the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of
this document. This document may include screenshots from the manufacturer's website which may be used for
multiple variations of this product. The model number supplied at the top of this page (explicitly specified
as "Model Number") is the exact model item you will receive.
