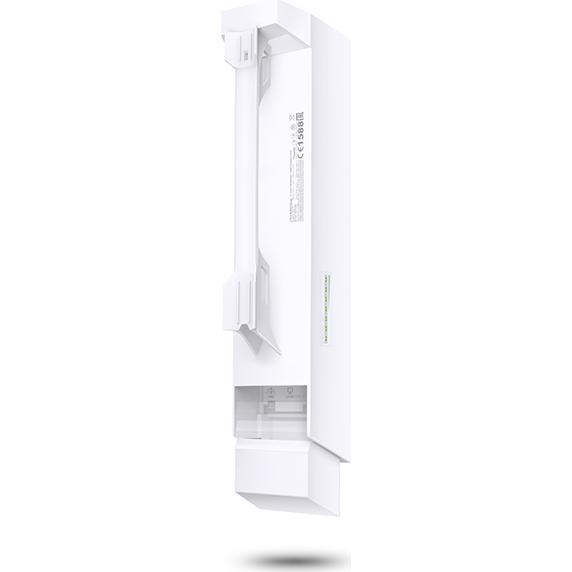

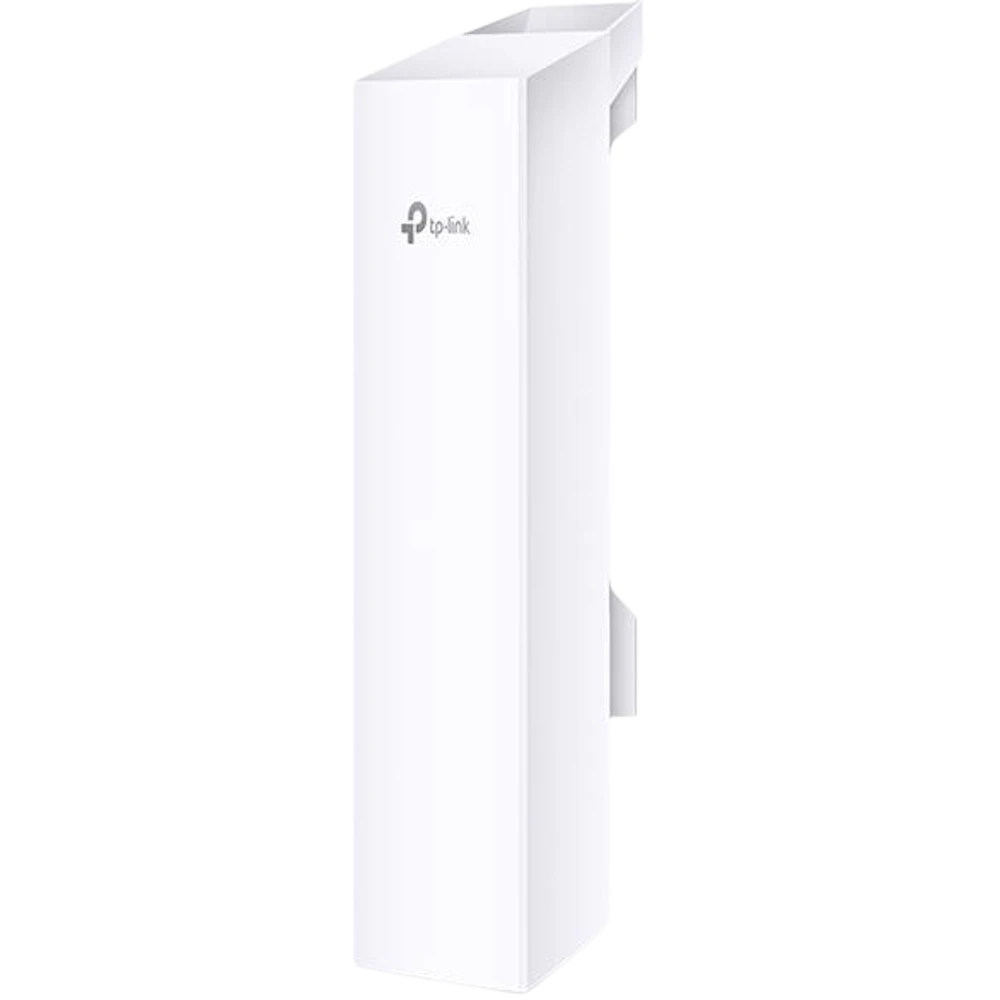

TP-Link Pharos CPE220 - 2.4GHz 300Mbps 12dBi Outdoor CPE
$
82
TP-LINK's CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.
Key Selling Points
- Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 30dBm/1000mw
- System-level optimizations for more than 13km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized management system - Pharos control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Product Features
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate.
Built-in high gain dual-polarized antenna dedicated metal reflector ensures higher gain and lower noise interference.
Specially designed for outdoor uses, ideal for long distance wireless data transmission.
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA technology.
CPE220 also comes equipped with centralized management that helps users easily manage all the devices in their network from a single PC - Pharos control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos control.
Attributes
Main Specifications
Data Link Protocol
IEEE 802.11b, IEEE 802.11g, IEEE 802.11nDevice Type
Radio access pointDimensions (WxDxH)
27.6 cm x 7.9 cm x 6 cmFlash Memory
8 MBForm Factor
External - outdoorFrequency Band
2.4 GHzIncluded Accessories
PoE injector, pole mountOS Required
UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows NT, Microsoft Windows 2000/XP/Vista/7/8Power
DC 16 - 27 VPower Over Ethernet (PoE) Supported
PoEProcessor
560 MHzProduct Description
TP-Link CPE220 - radio access pointRAM
64 MBTP-Link Pharos CPE220 - 2.4GHz 300Mbps 12dBi Outdoor CPE
This product is ordered from our suppliers once you place your order and PLE have received full payment. This item is in stock at our supplier in the following locations
Perth In Stock at Supplier
Adelaide In Stock at Supplier
melbourne In Stock at Supplier
Sydney In Stock at Supplier
PLE Code
PLE-622874Manufacturer
TP-LinkBoxed Weight
0.86Model Number
CPE220Warranty
3 Year PLE Standard Return to Base
