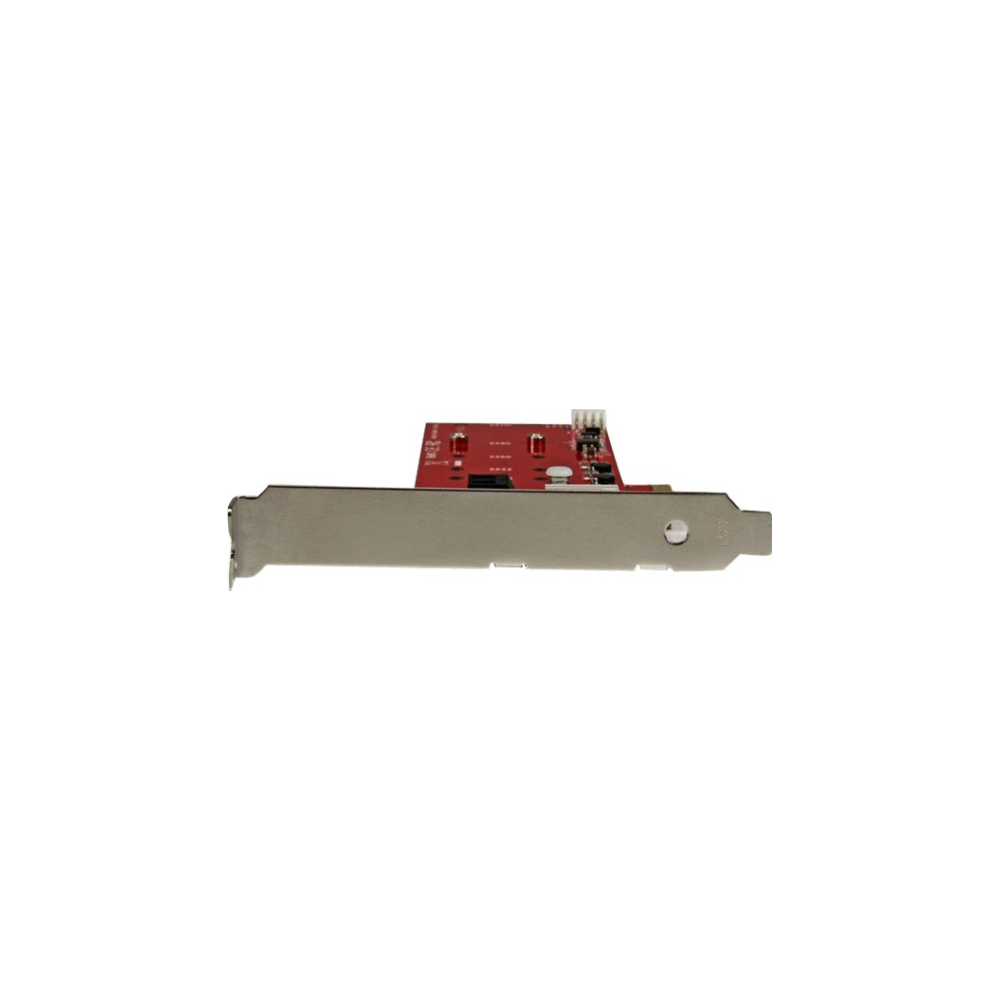

This M.2 SSD RAID controller card lets you install two M.2 NGFF (Next Generation Form Factor) drives in your desktop computer. The card also features two SATA III (6Gbps) ports and supports hardware RAID. Now, you can merge the speed and compact size of M.2 solid state drives (SSD) with the storage capacity of traditional hard disk drives (HDD).

Key Selling Points

EXPAND STORAGE CAPABILITIES: This M.2 SATA RAID Controller Card adds two internal M.2 SATA ports and two 7-pin SATA ports through PCIe, for convenient setup of hardware RAID configurations or additional storage drives; Supports Windows, Mac, and Linux
VERSATILE HARDWARE RAID: Supports Hardware RAID 0, 1, 10 (1+0), and JBOD (Just a Bunch of Disks); Port Multiplier supports up to four SATA drives on a single SATA host port; Supports up to seven total drives (2x M.2 SSDs, 5x SATA drives)
WIDE COMPATIBILITY: Supports all standard SATA and M.2 NGFF drive sizes (22110, 2280, 2260, 2242, 2230); Adjustable stand-offs and mounting holes; Compatible with PCIe x4, x8, or x16 slots; Includes full & low-profile brackets and M.2 mounting screws
INCREASED PRODUCTIVITY: This M.2 SATA RAID Controller Card is the ideal solution for creating a high-performance hardware RAID array to protect and back up your data, or expand your system's storage capabilities to improve overall performance
THE IT PRO'S CHOICE: Designed and built for IT professionals, this TAA compliant M.2 SATA SSD RAID Controller Card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance

Product Features

This M.2 controller card lets you take advantage of the size and performance benefits of NGFF SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case. When you couple the card with an M.2 drive, you can give your computer's performance a noticeable speed boost. By installing your operating system on the M.2 drive, you'll have faster access to the files you commonly use, and you can continue to use your higher-capacity platter HDD for bulk storage.

Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed but its M.2 drive is functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.

If you need a scalable, internal storage solution that you can count on, then this card can help. It supports a range of RAID configurations (RAID 0, 1, and 10), giving you multiple ways to expand your storage, improve your computer's performance, or to create data redundancy backups.

Because the M.2 card supports port multiplication, you can connect up to four drives to one of the card's SATA ports. With a built-in port multiplier, you can install up to seven drives (two M.2 SSDs, five SATA drives) in your computer through this single drive controller.

You can rest assured that your M.2 SATA drives are compatible with the card. It supports the most common drive sizes, including 22110, 2280, 2260, 2242 and 2230. For more versatility, the card also supports hybrid drives. The PEXM2SAT3422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Attributes

Main Specifications

Bus Type

PCIe 2.0 x2

Data Transfer Rate

6 Gbit/s

Device Type

Storage controller (RAID) - plug-in card

Dimensions (WxDxH)

2 cm x 18 cm x 12 cm

Hard Drive Form Factor Compatibility

M.2

Interface

M.2 Card / SATA 6Gb/s

Manufacturer Warranty

2 years warranty

Product Description

StarTech.com 2x M.2 NGFF SSD RAID Controller Card plus 2x SATA III Ports - PCIe - storage controller (RAID) - M.2 Card / SATA 6Gb/s - PCIe 2.0 x2

RAID Level

RAID 0, RAID 1, RAID 10, JBOD

Supported Devices

Disk array (RAID)

Weight

100 g

STARTECH M.2 RAID CONTROLLER CARD + 2X SATA PORTS

Name: STARTECH M.2 RAID CONTROLLER CARD + 2X SATA PORTS
Brand: Startech
SKU: PLE-624643
Price: 163.00 AUD
Availability: OutOfStock

163

This product is ordered from our suppliers once you place your order and PLE have received full payment. Unfortunately supplier availability of this item is unconfirmed. Please contact your closest store prior to ordering if you require a firm ETA.

PLE Code

PLE-624643

Manufacturer

Startech

Boxed Weight

0.17

Model Number

PEXM2SAT3422

Warranty

1 Year PLE Standard Return to Base

Buy now, pay later.

Same day delivery*

Add two Next Generation Form Factor M.2 SSDs and two SATA ports to your computer through PCI Express

Recover data or improve the performance and storage capacity of your desktop, by adding two M.2 solid-state drives (SSD) plus two SATA III drives
Create a high-performance hardware RAID array to protect and back up your data or expand your storage — supports RAID 0, 1, 10 (1+0)
Wide installation compatibility, with support for virtually all M.2 NGFF drives (22110, 2280, 2260, 2242, 2230), as well as hybrid drives
Port multiplier lets you connect up to seven drives total, including two M.2 drives
Two M.2 B-Key onboard sockets that support SATA III transfer speeds up to 6Gbps
Adjustable stand-offs, and multiple mounting holes support 110 mm, 80 mm, 60 mm, 42 mm, and 30 mm SSDs
Fast, hassle-free setup with native support on most operating systems
Compliant with PCI Express 2.0 standards
Supports Native Command Queuing (NCQ), as well as ATA and ATAPI commands
PCIe bus-powered, or powered by your computer’s power supply using a 4-pin floppy power connector (small drive power)
Equipped with a full-profile bracket, includes a low-profile (half-height bracket) for installation in small form-factor computers
Installs into x4, x8, or x16 PCIe slots

slide {0} of {1}, zoom in, Add two Next Generation Form Factor M.2 SSDs and two SATA ports to your computer through PCI Express

Leverage the size and speed of M.2 drives

When you couple the card with an M.2 drive, you can give your computer’s performance a noticeable speed boost. By installing your operating system on the M.2 drive, you'll have faster access to the files you commonly use, and you can continue to use your higher-capacity platter HDD for bulk storage.

Peace of mind, with simple and cost-effective data recovery

Build a high-performance RAID array

If you need a scalable, internal storage solution that you can count on, then this card can help. It supports a range of RAID configurations (RAID 0, 1, and 10), giving you multiple ways to expand your storage, improve your computer’s performance, or to create data redundancy backups.

Connect even more drives with port multiplication

Because the M.2 card supports port multiplication, you can connect up to four drives to one of the card’s SATA ports. With a built-in port multiplier, you can install up to seven drives (two M.2 SSDs, five SATA drives) in your computer through this single drive controller.

Supports a wide range of drives

The PEXM2SAT3422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Increase the internal storage capacity of your standard or small form-factor computer
Create a RAID array and add the security of data redundancy and increased storage to your PC
Access and recover data from almost any M.2 SSD, such as drives pulled from laptops and other computers
Optimize your system for I/O intensive applications such as office suites, photo and video editing, and media players

Documents

This document and other documents provided pursuant are for informational purposes only. The information type should not be interpreted to be a commitment on the part of the Supplier. The Supplier cannot guarantee the accuracy of information presented. The user assumes the entire risk as to the accuracy and the use of this document. This document may include screenshots from the manufacturer's website which may be used for multiple variations of this product. The model number supplied at the top of this page (explicitly specified as "Model Number") is the exact model item you will receive.
