TP-Link SF1005P - 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
$
49NETWORKING
Browse Networking
100MBPS SWITCH
Browse 100Mbps Switch
SWITCHES
Browse Switches
POWER OVER ETHERNET
Browse Power over Ethernet
TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Key Selling Points
- 5 10/100Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Requires no configuration and installation
Product Features

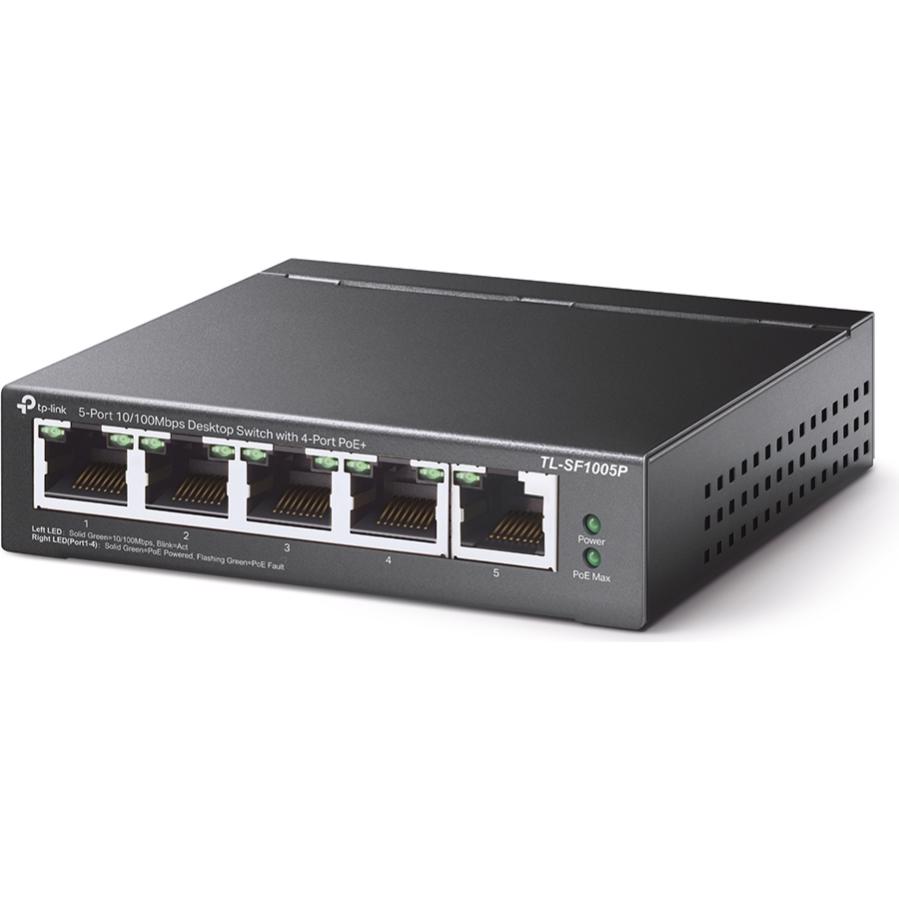

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

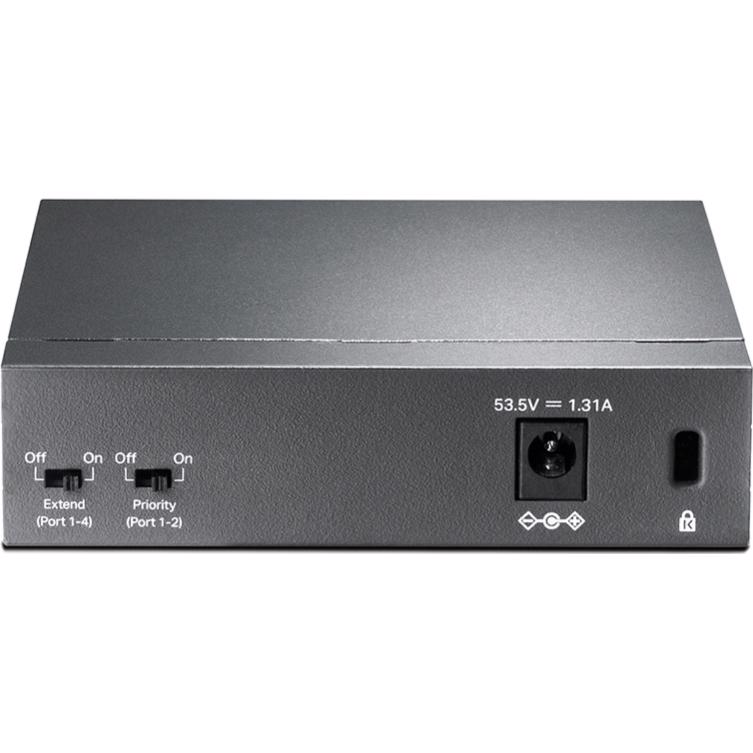

TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link's TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
Attributes
Main Specifications
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3xDevice Type
Switch - 5 ports - unmanagedDimensions (WxDxH)
9.98 cm x 9.8 cm x 2.5 cmFeatures
Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forwardMAC Address Table Size
2K entriesPerformance
Switching capacity: 1 GbpsPoE Budget
58 WPorts
5 x 10/100 (4 PoE)Power Over Ethernet (PoE)
PoEProduct Description
TP-Link TL-SF1005P - switch - 5 ports - unmanagedSubtype
Fast EthernetTP-Link SF1005P - 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
VIC :
Moorabbin
Approx 1 business day
VIC Warehouse
In Stock
WA :
Bentley
Approx 1 business day
Cockburn
In Stock
Osborne Park
Approx 1 business day
WA Warehouse
In Stock
Wangara
In Stock
Set your location for shipping prices
Set
PLE Code
PLE-629351Manufacturer
TP-LinkBoxed Weight
0.87Model Number
TL-SF1005PWarranty
3 Year PLE Standard Return to Base
