A product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
$
52
COOLING FANS
Browse Cooling Fans
/
FANS
Browse Fans
/
120MM FANS
Browse 120MM Fans
  • A large main feature product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
  • A large main feature product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
  • A large main feature product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
  • A large main feature product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
  • A large main feature product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
  • A small tile product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
  • A small tile product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
  • A small tile product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
  • A small tile product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
  • A small tile product image of Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan
The NF-F12 is one of Noctua's renowned and popular fans. Its outstanding static pressure performance and the FocusedFlow frame make it ideal for use on heatsinks and radiators. The chromax.black.swap edition combines the NF-F12's signature quiet cooling performance with an attractive design and a bundle of swappable anti-vibration pads, that allow the color-customization of the fan to match individual build color schemes. Topped off with Noctua's trusted premium-grade SSO2 bearing and long hours MTTF, the NF-F12 PWM chromax.black.swap is the perfect choice for all users, who value individual, focused build aesthetics just as much as high quality and performance.
Key Selling Points
  • Swappable anti-vibration pads
  • Heptaperf impeller
  • Focused Flow frame
  • AAO frame
  • Stepped Inlet Design
  • Inner Surface Microstructures
  • SSO2 bearing
  • Metal bearing shell
  • Custom-designed PWM IC with SCD
Product Features

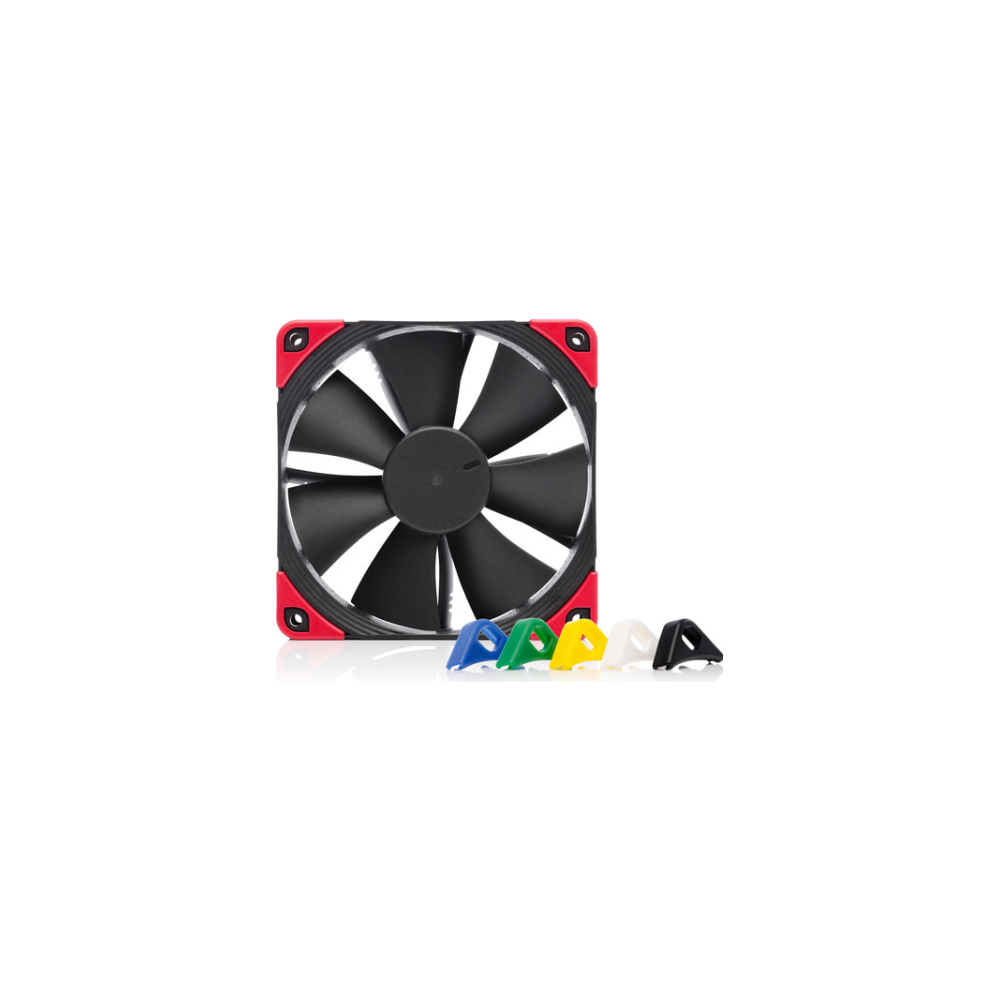

The NF-F12 PWM chromax.black.swap comes with anti-vibration pads. By combining the various colors or leaving off the pads on one side, the fan can be coordinated with most popular build color schemes out of the box.
Custom designed for the Focused Flow frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven-blade Heptaperf impeller has been carefully optimized to achieve a perfect balance between power and quietness.
Designed for pressure-demanding applications, such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes, that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Noctua's AAO (Advanced Acoustic Optimization) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
With the tips of the fan blades plowing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
The chromax line fans feature the further optimized Noctua's time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilization, precision and durability.
In order to guarantee the high degree of manufacturing precision, minimum tolerance and excellent long-term stability, the chromax edition fans sport a CNC milled bearing shell made entirely from brass.
Supporting fully automatic PWM speed control, the chromax edition fans use Noctua's custom-designed NE-FD1 PWM IC, that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Attributes
Main Specifications
Air Flow
55 cfm
Color
Black
Colour
Black
Fan Bearing
SSO2 bearing
Fan Diameter
120 mm
Fan Height
25 mm
Features
Pulse-width modulation (PWM) support, FocusedFlow
Manufacturer Warranty
6 years warranty
Noise Level
22.4 dBA
Package Content
4 screws, 4 black anti-vibration pads, 4 blue anti-vibration pads, 4 green anti-vibration pads, 4 red anti-vibration pads, 4 white anti-vibration pads, 4 yellow anti-vibration pads
Power Connector
4-pin fan connector
Product Description
Noctua chromax NF-F12 PWM - case fan
Product Type
Case fan
Rated Voltage
12 V
Rotation Speed
300-1500 rpm

Noctua NF-F12 PWM Chromax - 120mm x 25mm 1500RPM Cooling Fan

NF-F12-PWM
NF-F12-PWM-CH-BK-S
$
52
VIC :
Moorabbin
In Stock
VIC Warehouse
In Stock
WA :
Bentley
In Stock
Cockburn
In Stock
Osborne Park
In Stock
WA Warehouse
ETA 2/12/2024
Wangara
In Stock
Set your location for shipping prices
Use device location
Set
PLE Code
PLE-630575
Manufacturer
Noctua
Boxed Weight
0.31
Model Number
NF-F12-PWM-CH-BK-S
Warranty
3 Year PLE Standard Return to Base
