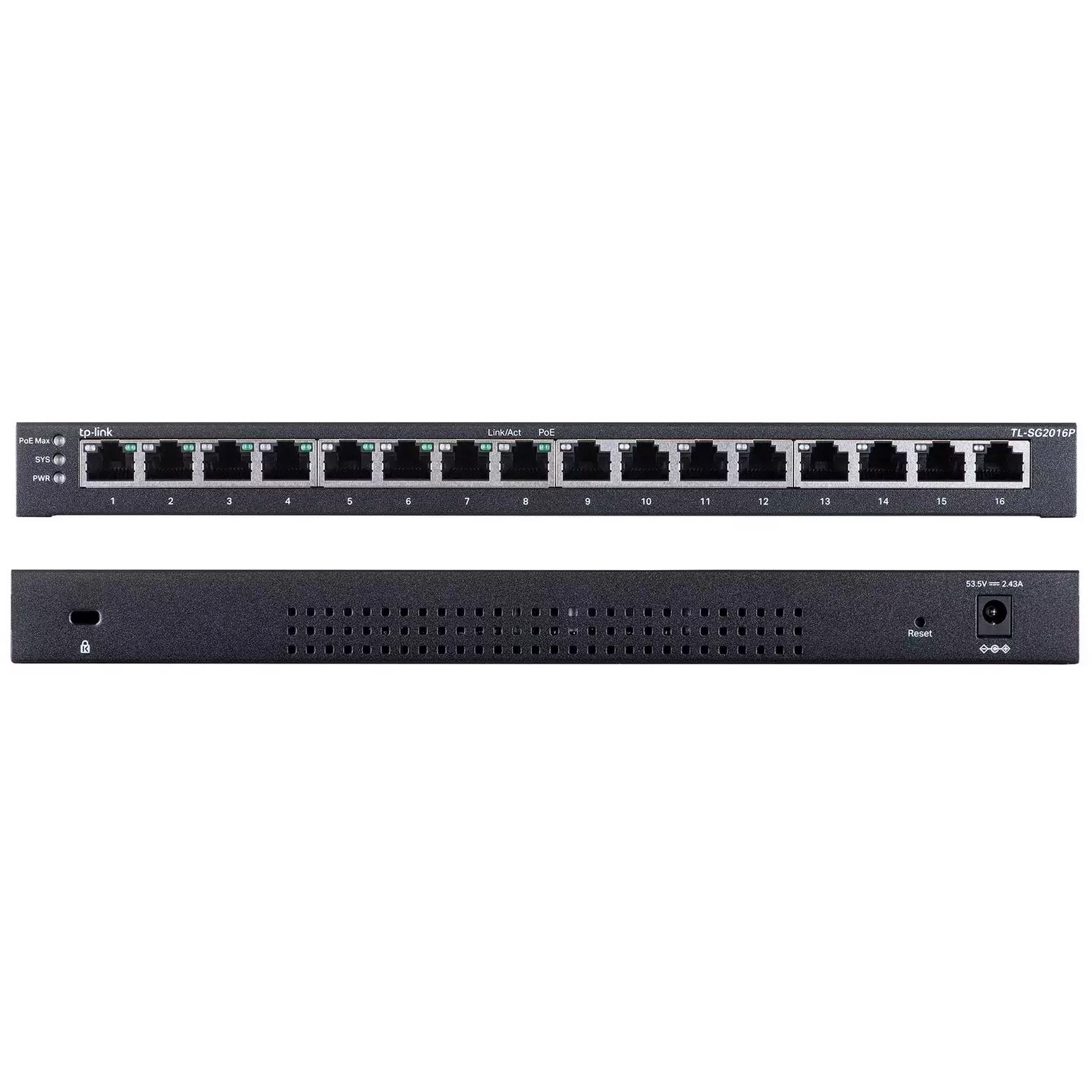

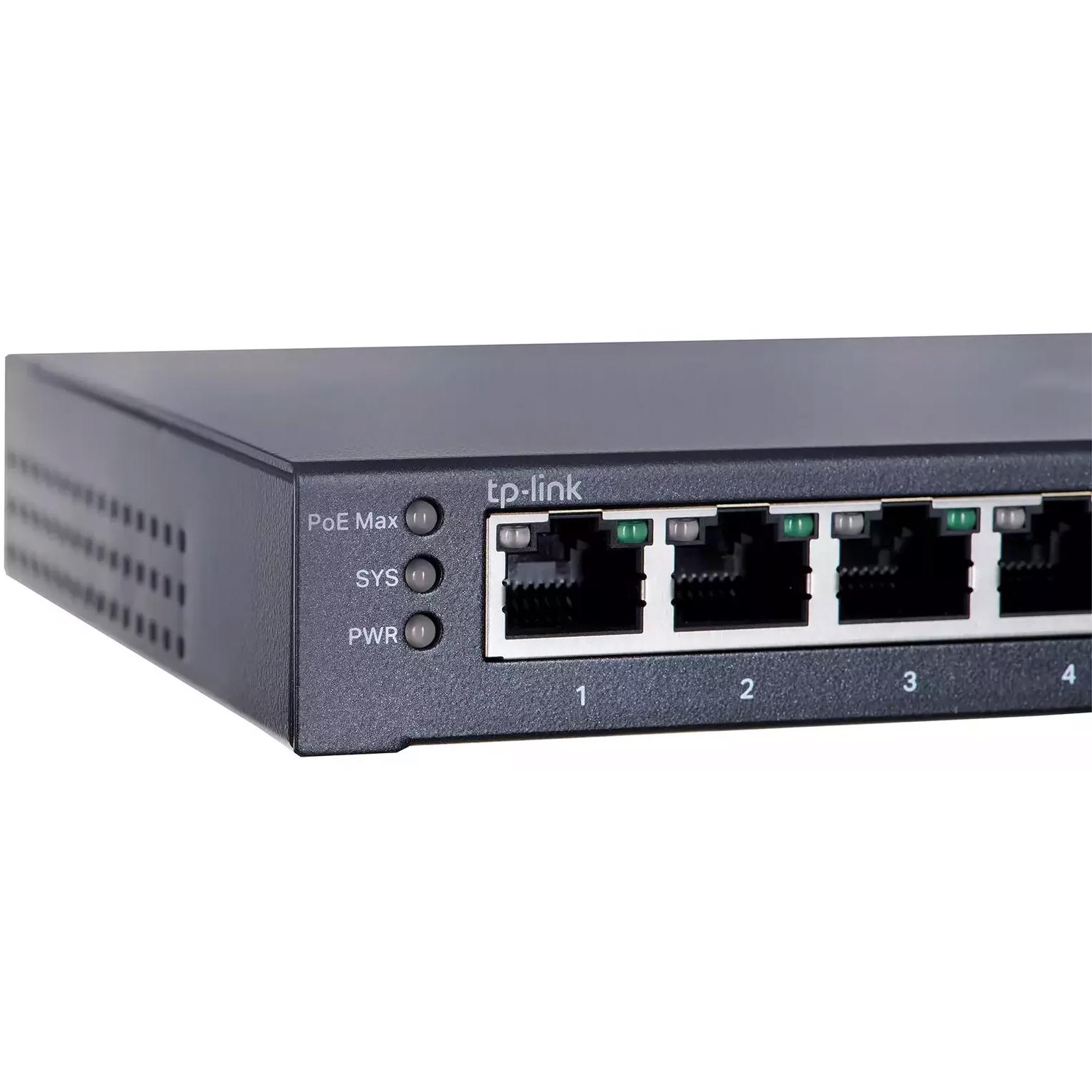

TP-Link JetStream TL-SG2016P - 16-Port Gigabit Smart Switch with 8-Port PoE+
$
249
TP-Link's JetStream Gigabit smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Key Selling Points
- 120 W PoE budget - 8x 802.3at/af-compliant PoE+ ports with a total power supply of 120 W
- Full Gigabit ports - 8x gigabit PoE+ ports and 8x gigabit non-PoE ports provide high-speed connections
- Integrated into Omada SDN - zero-touch provisioning, centralized cloud management, and intelligent monitoring
- Centralized management - Cloud access and Omada app for ultra convenience and easy management
- Robust security strategies - IP-MAC-port binding, ACL, port security, DoS defend, storm control, DHCP snooping, 802.1X, radius authentication, and more
- Optimize voice and video applications - L2/L3/L4 QoS and IGMP snooping
Product Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN that the switches support, Voice Applications will perform better and smoother.
TP-Link JetStream smart switches support a complete lineup of L2 features, including IGMP Snooping/ MLD Snooping, 802.1Q/MAC/Protocol VLAN, STP/RSTP/MSTP, Link Aggregation Group (LAG), Port Isolation, Port Mirroring, and 802.3x Flow control function. IGMP Snooping ensures the multicast stream be forwarded intelligently to the appropriate subscribers by the switch, while IGMP Throttling & Filtering restricts each subscriber on a certain level to prevent unauthorized multicast access. Besides, these smart switches also support L2+ features like static routing. It is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic to be more efficient.
TP-Link JetStream smart switches support multiple user-friendly standard management features such as intuitive web-based Graphical User Interface (GUI), industrially standard Command Line Interface (CLI) and SNMP (v1/v2c/v3). These switches support RMON (Remote Network Monitoring), which enables the switch to be polled for valuable status information and send traps when encountering abnormal events. Also, this series of switches support Dual Image function, which makes there be less 'down-time' when switches are being upgraded/downgraded.
TP-Link JetStream smart switches support comprehensive IPv6 features including IPv6 management, ACL, QoS and MLD Snooping, all of these features help to ensure a smooth migration to IPv6-based network without changing switches in the future.
Attributes
Main Specifications
Capacity
Static routes: 32IP interfaces: 16Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3atDevice Type
Switch - 16 ports - L2+ - managedDimensions (WxDxH)
28.6 cm x 11.17 cm x 2.54 cmEnclosure Type
Rack-mountableFeatures
Flow control, IGMP snooping, port mirroring, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, QoS, DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, DHCP relay, Port Security, MIB,Jumbo Frame Support
9KBMAC Address Table Size
8K entriesPerformance
Switching capacity: 32 GbpsPacket forwarding rate: 23.81 MppsPacket buffer size: 4.1 MbitPorts
16 x 10/100/1000Power
53.5 V (60 Hz) 2.4 AProduct Description
TP-Link JetStream TL-SG2016P V1 - switch - 16 ports - managed - rack-mountableRemote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, RSTP, RADIUSRouting Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STPSubtype
Gigabit EthernetSystem Requirements
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11TP-Link JetStream TL-SG2016P - 16-Port Gigabit Smart Switch with 8-Port PoE+
VIC :
Moorabbin
Approx 1 business day
VIC Warehouse
In Stock
WA :
Bentley
Approx 1 business day
Cockburn
ETA 22/11/2024
Osborne Park
Approx 1 business day
WA Warehouse
In Stock
Wangara
In Stock
Set your location for shipping prices
Set
PLE Code
PLE-660679Manufacturer
TP-LinkBoxed Weight
2.02Model Number
SG2016PWarranty
3 Year PLE Standard Return to Base
