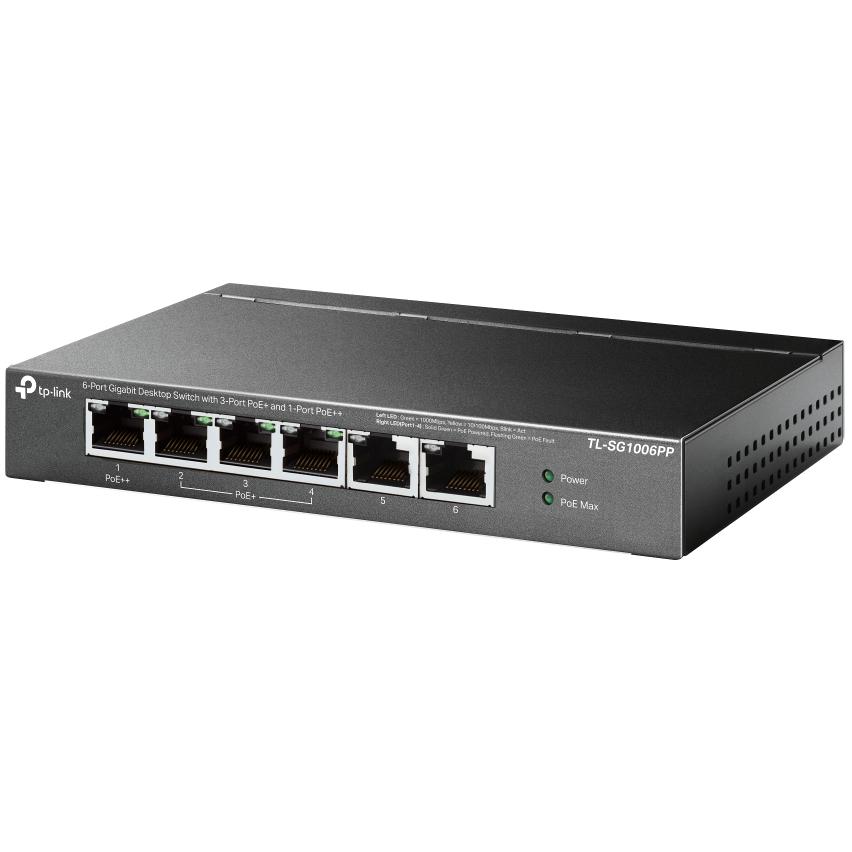

TP-Link SG1006PP - 6-Port Gigabit Desktop Switch with 3-Port PoE+ & 1-Port PoE++

TL-SG1006PP is a switch with 6 Gigabit ports that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant powered devices (PDs) at port 1 and IEEE 802.3af/at compliant powered devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP cameras or IP phones, etc.

Key Selling Points

6x 10/100/1000 Mbps RJ-45 ports
With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at/bt compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE power up to 30 W for each PoE+ port and 60 W for PoE++ port
Supports PoE power up to 64 W for all PoE ports
Up to 250 m data and power transmitting range under Extend Mode
PoE auto recovery ensures stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug-and-Play, no configuration and installation required

Product Features

4 RJ-45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant powered devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 2-4.

TL-SG1006PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is more than or equals 64 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example, port 2, 3, and 4 is using 18 W respectively (maximum power per port is 30 W); the system power is 54 W in total. If there is an additional PD inserted to port 1 with 25 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 2 and 3 will use 18 W respectively and port 1 will use 25 W, no power will be supplied to port 4.

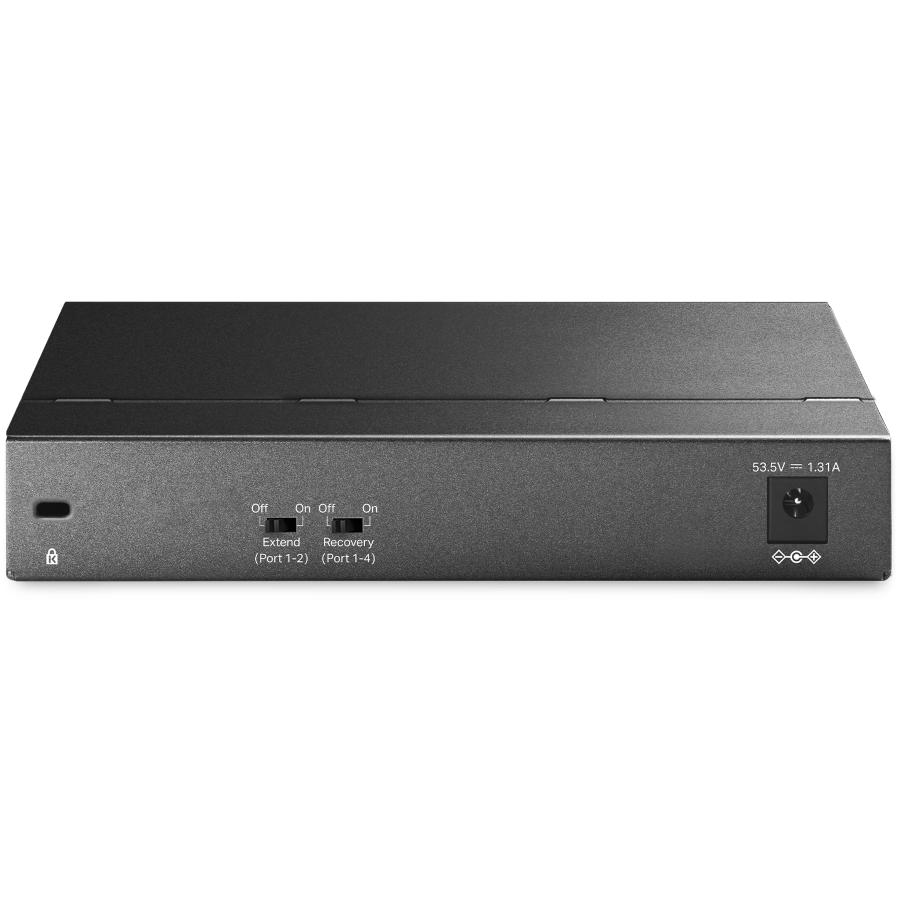

Up to 250 m PoE power supply and data transmission under Extend Mode for port 1-2. With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-4. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.

TL-SG1006PP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 6-port Gigabit desktop switch with 3-port PoE+ and 1-port PoE++ TL-SG1006PP is a great selection for expanding your network.

Attributes

Main Specifications

Compliant Standards

IEEE 802.3u, IEEE 802.3i, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt

Device Type

Switch - 6 ports - unmanaged

Dimensions (WxDxH)

15.8 cm x 10.1 cm x 2.5 cm

Features

Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, port isolation, priority mode, extend mode, DSCP based QoS, Intelligent Power Management, MAC address auto-learning, MAC address auto-aging, PoE Auto Recovery

MAC Address Table Size

4K entries

Performance

Switching capacity: 12 GbpsPacket forwarding rate: 8.928 Mpps

PoE Budget

64 W

Ports

1 x 10/100/1000 (PoE++) + 3 x 10/100/1000 (PoE+) + 2 x 10/100/1000

Power Over Ethernet (PoE)

PoE++

Product Description

TP-Link TL-SG1006PP V1 - switch - 6 ports - unmanaged

Routing Protocol

IGMP

Subtype

Gigabit Ethernet

TP-Link SG1006PP - 6-Port Gigabit Desktop Switch with 3-Port PoE+ & 1-Port PoE++

Name: TP-Link SG1006PP - 6-Port Gigabit Desktop Switch with 3-Port PoE+ & 1-Port PoE++
Brand: TP-Link
SKU: PLE-661714
Price: 89.00 AUD
Availability: OutOfStock

VIC :

Moorabbin

Out of stock

VIC Warehouse

Out of stock

WA :

Bentley

Out of stock

Cockburn

Out of stock

Osborne Park

Out of stock

WA Warehouse

Out of stock

Wangara

Out of stock

Set your location for shipping prices

Set

PLE Code

PLE-661714

Manufacturer

TP-Link

Boxed Weight

0.87

Model Number

TL-SG1006PP

Warranty

3 Year PLE Standard Return to Base
