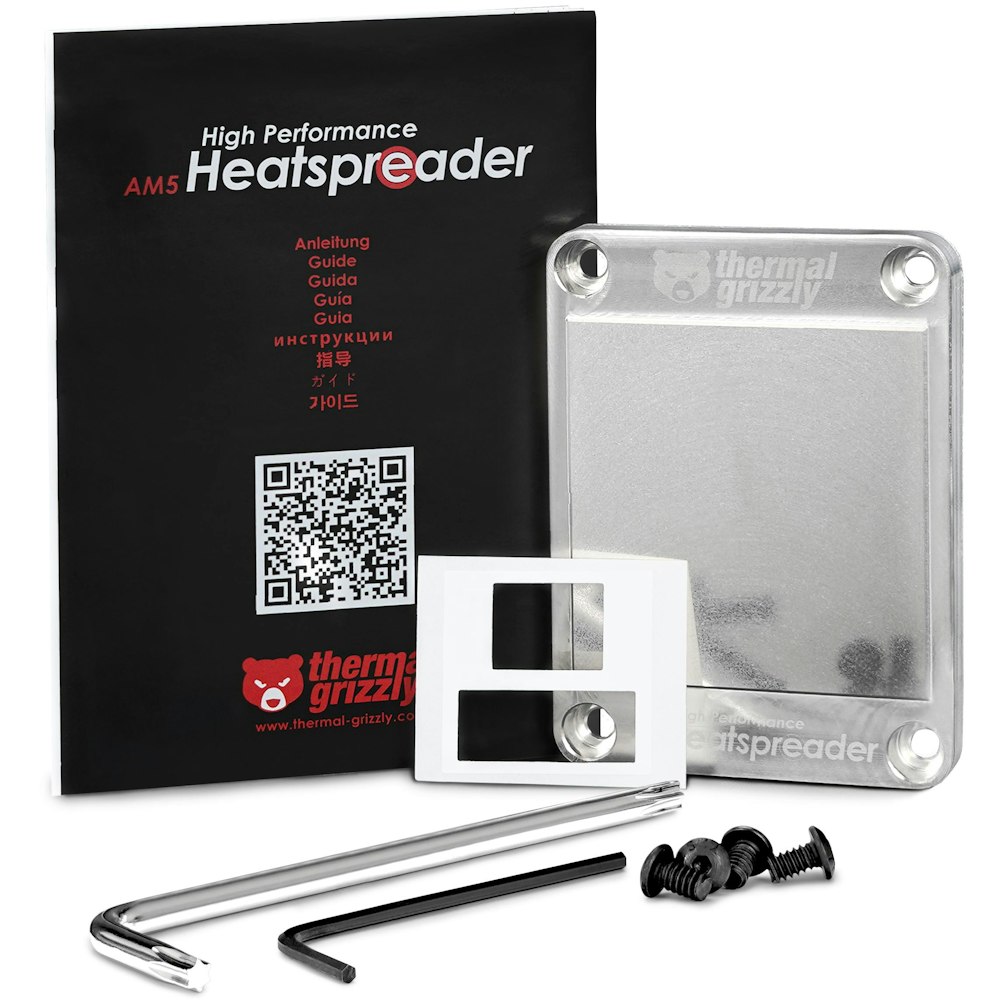

The AM5 High Performance Heatspreader is an upgrade heatspreader for AMD's Ryzen 7000 processors. The nickel-plated copper heatspreader features a 240 percent larger diamond-milled precision surface. This increased surface area over the original heatspreader allows for maximum heat dissipation with air and water coolers, while precision milling ensures extremely low surface roughness for best contact with the heat sink.

• Replaces SAM and heatspreader
• 240% larger surface area (22 cm²)
• Made of nickel-plated copper
• Precision diamond milled surface
• Compatible with air and water coolers
• Only for delidded CPUs!

The nickel-plated surface of the AM5 High Performance Heatspreader is compatible with traditional thermal pastes and gallium-based liquid metals. The nickel forms a barrier layer between the liquid metal and the copper cooler, so liquid metal does not diffuse into the copper and alloying is minimized. As a result, multiple applications of liquid metal are generally not necessary. For the most maintenance-free system possible, a KryoSheet graphene thermal pad can be used as the thermal interface between the CPU and the AM5 High Performance Heatspreader. Since KryoSheet pads are electrically conductive, a cover is included to protect the electronic components on the CPU package.

Ryzen 8X00G Compatibility

Attention: The AM5 High Performance Heatspreader is NOT COMPATIBLE with the APUs of the Ryzen 8000G series! For more information on the compatibility of the AMD Ryzen 5 8500G, AMD Ryzen 5 8600G and AMD Ryzen 7 8700G with our products, please watch the following video: “AMD Ryzen 8000 Delidded - Liquid Metal Changes Everything!”

Note on Ryzen 9000 compatibility

According to initial internal tests, the AM5 High Performance Heatspreader is compatible with AMD's Ryzen 9000 processor series. The compatibility test only includes the normal 9000 CPUs. Ryzen 9000X3D CPUs will be tested as soon as available.

Attention: Removing the heatspreader ("delidding") of a processor is at your own risk! Delidding the CPU voids the manufacturer's warranty! Damage caused by delidding the CPU is not covered by the manufacturer!

Removing the Socket Actuation Mechanism (SAM) of the motherboard may invalidate the manufacturer's warranty!
