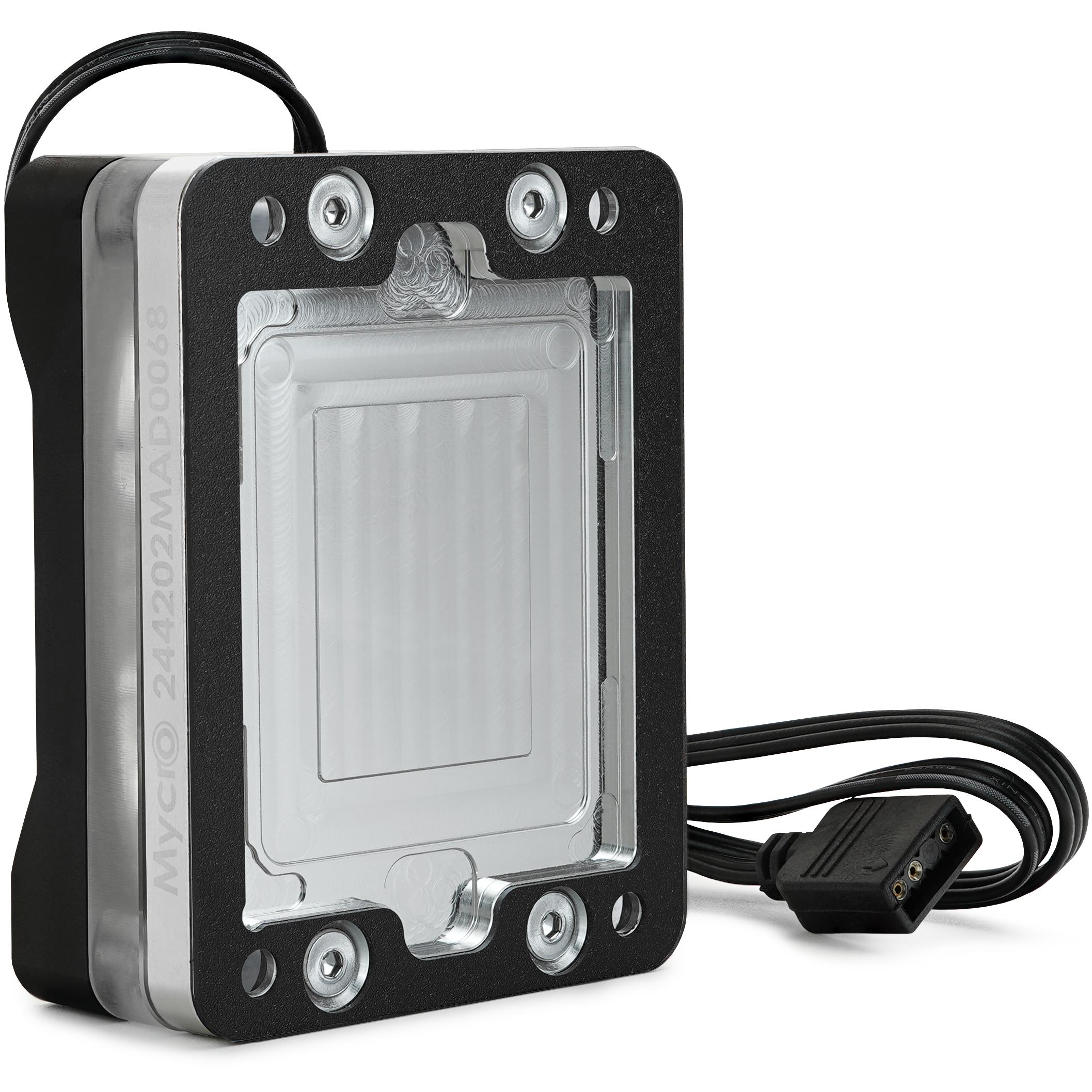

The Intel 1851 Mycro Direct-Die Pro RGB V1 features a jet system on the cooler's surface, and the slot width of the cooling channels has been optimized. The cooler’s cold plate is made of nickel-plated copper and is mounted directly onto the CPU chip. To do this, the motherboard’s Integrated Loading Mechanism (ILM) must be removed, and the CPU must be delidded. The nickel coating on the cooler plate acts as a barrier to prevent gallium-based liquid metal from diffusing into the copper, making multiple applications of liquid metal generally unnecessary.

• Water cooler for direct-die mounting
• Microfin cooler made of nickel-plated copper
• Replaces ILM and heatspreader
• Cover made of acrylic and aluminum
• G1/4-inch fittings
• CPU compatibility list available online
• Only for delidded CPUs!

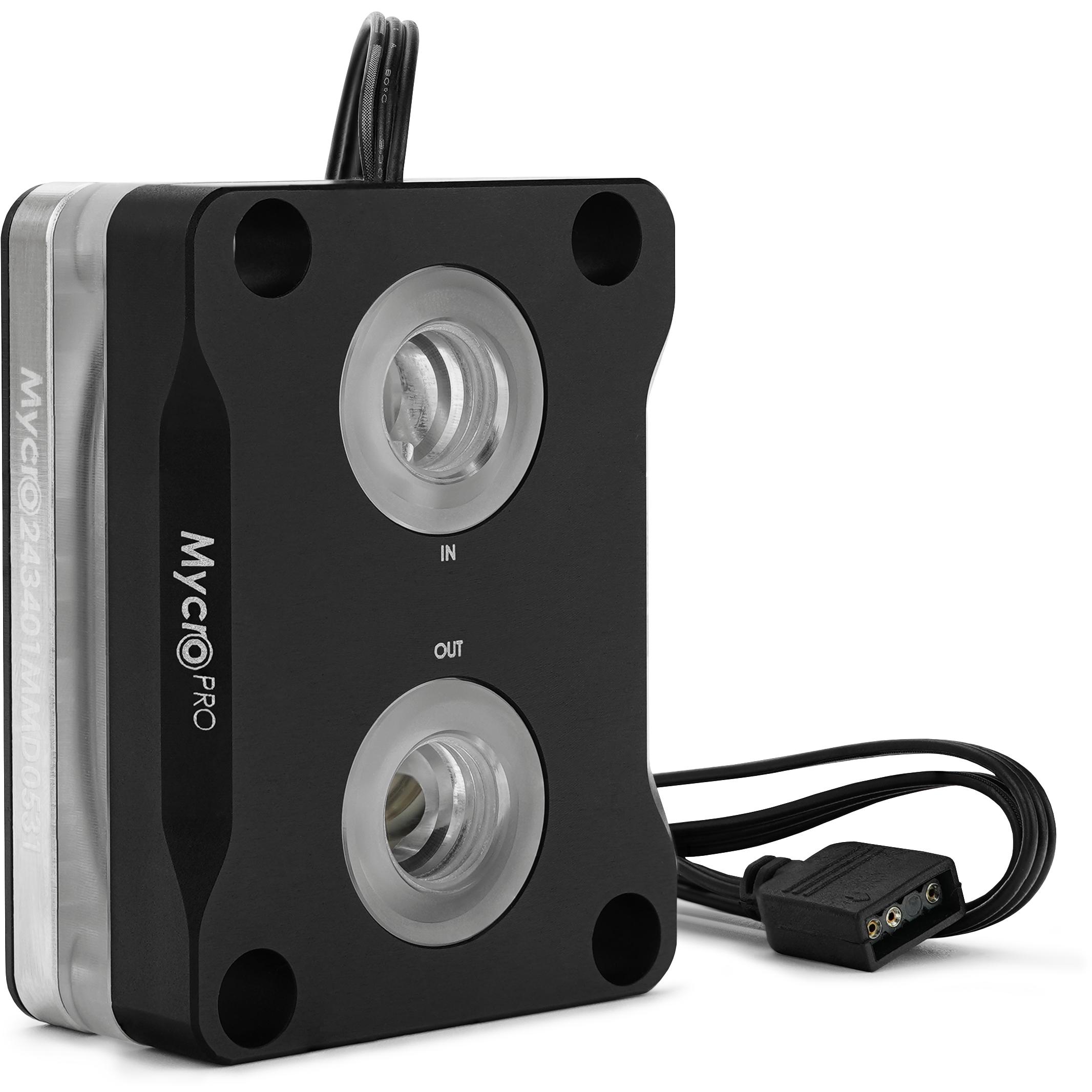

Between the cold plate and the anodized aluminum lid is acrylic, which undergoes a tempering process after milling to relieve internal stress. This ensures that stress cracks do not form in the acrylic over time, unlike tempered acrylic. RGB LEDs are located under the aluminum lid, controllable via a 3-pin ARGB header (+5V/DATA/GND) on the motherboard. These LEDs illuminate the acrylic under the lid and the G1/4-inch fittings on the lid.

Note on the use of KryoSheet

The Intel 1851 Mycro Direct-Die Pro RGB V1 has been extensively tested internally in various scenarios. During development, the focus was placed on ensuring stable operation of the processor and memory. The Intel 1851 Mycro Direct-Die Pro RGB V1 is mounted in such a way that the cooler’s outer edges do not rest on the motherboard. In our test series, KryoSheet combined with the Intel 1851 Mycro Direct-Die Pro RGB V1 did not provide significant improvements in temperature and posed issues with contact pressure. Therefore, we do not recommend thermal pads, as their additional thickness significantly affects contact pressure, which can impact performance.

Compatibility Notice

The Intel 1851 Mycro Direct-Die Pro RGB V1 is only compatible with Intel CPU's that use the LGA 1851 socket.

Attention: Removing the heatspreader (“delidding”) of a processor is at your own risk! The manufacturer's warranty expires when the CPU is delidded! Damage caused by delidding the CPU is not covered by the manufacturer's warranty! Removing the Integrated Loading Mechanism (ILM) of the motherboard may invalidate the manufacturer's warranty!
